Khoom Description
EC012C-HP: Ntau- siv Limb Electrode rau txhua hom ECG electrode, Hlau plating AgCI (Tsub), IEC
Cov ntsiab lus tseem ceeb
- Clamp Lub Cev: Plastics Durable (lub teeb yuag, reusable)
- Conductive Phaj: AgCI-plated hlau (kom ntseeg tau siab conductivity thiab teeb liab clarity)
- Ntsia Hlau Clamp: Hlau fastener (kev ruaj ntseg cov neeg mob cable txuas kom tsis txhob teeb liab tawm)
- Xim -Code Plhaub: 4 txawv xim (liab / daj / ntsuab / dub) rau kev txheeb xyuas cov hmoov lead

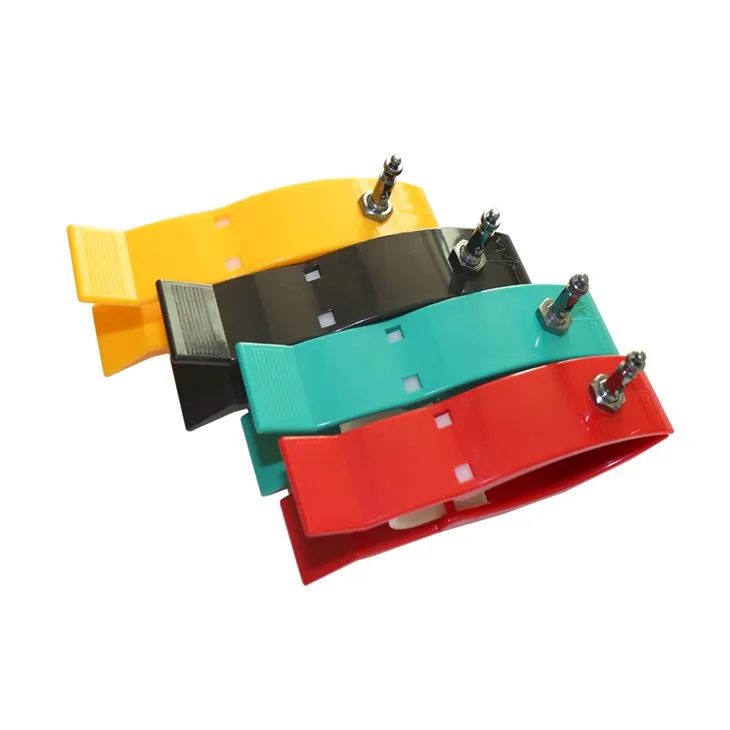

Reusable ECG Limb Electrode nrog Ntsia Hlau Clamp (Model EC012C-HP) yog qhov siab -cov khoom siv rau cov neeg laus electrocardiography. Featuring ib lub hnab yas ruaj khov, AgCI-plated conductive hlau phaj, thiab ruaj ntseg ntsia hlau clamp (rau cov neeg mob cable connectors), nws xa cov teeb liab txhim khu kev qha rau nto ECG kaw. Xim-coded (liab/daj/ntsuab/dub) raws li European qauv (sab caj npab: liab; sab caj npab: daj; sab ceg: dub; sab laug ceg: ntsuab), nws tiv thaiv cov hlau lead tsis meej pem hauv chaw kho mob- zoo tagnrho rau rov siv tau hauv tsev kho mob, chaw kho mob, thiab chaw kuaj mob.
Core Functions
- Kev ruaj ntseg teeb liab kis tau tus mob: AgCI-plated hlau phaj muab qhov tseeb, qis- suab nrov hluav taws xob teeb liab kom raug ECG kaw
- Ruaj ntseg Limb Fixation: Clamp tsim kom nruj, txhim khu kev qha txuas rau cov neeg laus cov ceg tawv thaum kuaj
- yuam kev -Dawb Lead Identification: Xim-coded teeb (liab / sab caj npab; daj / sab caj npab; dub / sab xis; ntsuab / sab laug ceg) tiv thaiv kev sib txuas tsis meej pem
- Universal Cable TxuasScrew clamp locks 3mm / 4mm / Snap / Grabber tus neeg mob cable pins nyob rau hauv qhov chaw (tshaj nrog txhua lub tshuab ECG)
Technical Specifications
| Parameter | Specification |
| Qauv nab npawb | EC012C-HP |
| Hom | EKG/ECG Electrodes - Ntau- siv Limb Electrode |
| Khoom siv | Yas (clip) + AgCI-plated hlau (conductive phaj) |
| Loj | Cov neeg laus haum |
| Txuas | Ntsia Hlau Clamp (fits 3mm / 4mm / Snap / Grabber tus neeg mob cable pins) |
| Ua raws | IEC cov qauv |
| Reusability | Ntau- siv (nrog kev tu kom zoo) |
| Xim Teeb | Liab (sab caj npab) / Daj (sab laug npab) / Ntsuab (sab laug ceg) / Dub (sab xis ceg) |
Nta & Qhov Zoo
- AgCI-Plated Conductivity: Ua kom pom tseeb, qis - suab ECG cov cim
- Xim -Coded Safety: Ua tau raws li European qauv rau kev txheeb xyuas cov hmoov lead (tiv thaiv kev tsis meej pem)
- Universal Compatibility: Haum rau txhua lub tshuab ECG (3mm / 4mm pin connectors)
- Reusable & Durable: Yas + hlau tsim (ntev kev pab cuam lub neej nrog kev tu kom zoo)
- Ruaj ntseg Ntsia Hlau Clamp: Locks tus neeg mob cable connectors nyob rau hauv qhov chaw (tsis muaj teeb liab tso tawm)
Daim ntawv thov Scenario
- Tsev Kho Mob/Clinics: Cov neeg laus nto ECG kuaj mob
- Diagnostic Centers: Kev ntsuam xyuas electrocardiography niaj hnub
- Cov Tsev Kho Mob: Tsis yog -kev saib xyuas ECG (tsis yog rau kev siv defibrillation / Holter siv)
Cov lus qhia siv
- Npaj daim tawv nqaij: Ntxuav thaj chaw ko taw nrog ether-soaked paj rwb (tsis txhob raug mob/scarred ntawm daim tawv nqaij).
- Siv Cov Tshuaj Txhuam Hniav: Muab tshuaj txhuam kom sib npaug ntawm AgCI hlau phaj (kom paub meej tias daim tawv nqaij sib cuag).
- Txuas Cable: Siv cov ntsia hlau clamp los txuas tus neeg mob cable (3mm / 4mm tus pin) rau electrode.
- Txuas Clamp: Ruaj ntseg cov electrode rau tus ceg ceg (ib xim code: liab=sab caj npab; daj=sab laug; dub=sab xis; ntsuab=sab laug ceg).
- Tshaj tawm -Siv: Tshem tawm, ntxuav, thiab khaws cia rau rov siv dua.
Reusable ECG Limb Electrode nrog Ntsia Hlau Clamp
Tus neeg laus no -qhov loj, xim-coded ECG clamp electrode (EC012C-HP) nta AgCI-plated conductivity, ruaj ntseg ntsia hlau clamp, thiab kev ua raws li IEC. Nws muab kev txhim khu kev qha, rov siv tau zoo rau qhov chaw kaw ECG-nrog xim-coded coj los tiv thaiv kev sib txuas tsis raug hauv chaw kho mob.
Duab
FAQ
Q: Cov electrode no puas tuaj yeem siv rau defibrillation?
A: Tsis yog- nws tsis haum rau kev tiv thaiv defibrillation lossis ntev - kev saib xyuas lub sijhawm (xws li Holter / phais).
Q: Dab tsi cable pins nws haum?
A: Nws yog sib xws nrog 3mm, 4mm, Snap thiab Grabber tus neeg mob cable pins (ntawm cov ntsia hlau clamp).
Q: Yuav ua li cas ntxuav lub electrode?
A: Siv cov tshuaj tua kab mob, yaug nrog dej, thiab so nrog<10% ethyl alcohol (do not use ultrasonic/steam sterilization).
