Cov Lus Qhia Ceev
Qhov chaw keeb kwm: Guangdong, Suav Teb (Suav Teb) Tus Npe Lub Npe: Greatmade

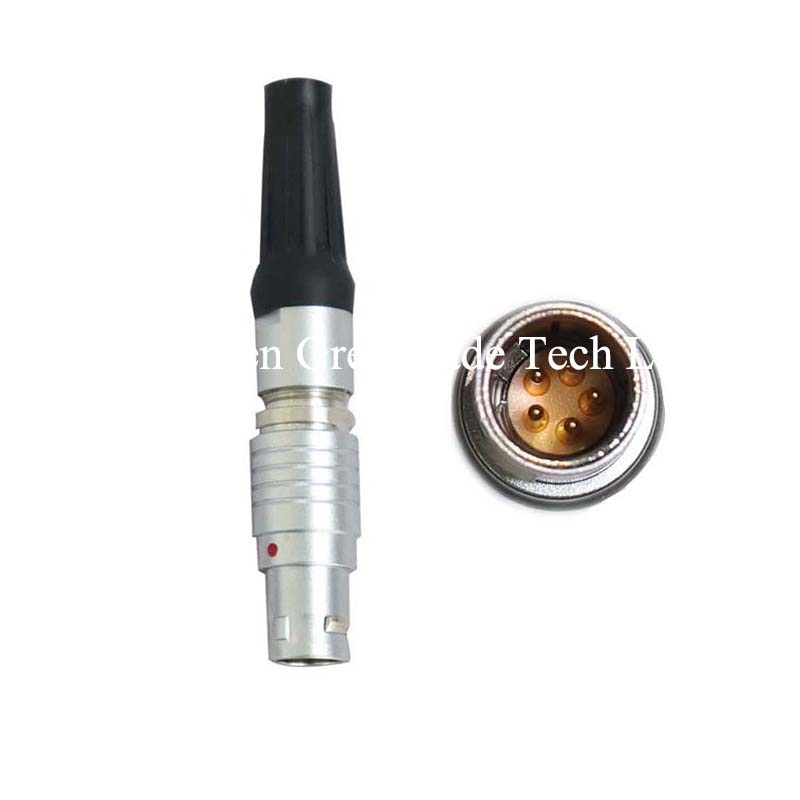

Tus Qauv Zauv: EGG FGG.1B.305.CLAD62Z Hom: Lub Vuag Rub Rub
Daim Ntawv Thov: Tsheb, Teeb, Hluav Taws Xob Txuas Hluav Taws Xob : Poj niam / txiv neej, poj niam thiab txiv neej
Tus Pin: 1B 5pin Vaj Tse Materia: tooj dag
Tiv Tauj Hom: Cov Phom Hooj Sib Cuam Tiv Thaiv: Cov kub
Kev Kho Kom Zoo: Pearl Chrome Endurance: Saum toj 5000 zaus laub-rub
Khoom Insulator: PPS IP Qib: IP50
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 50000 Daim / Daim Ib Hlis

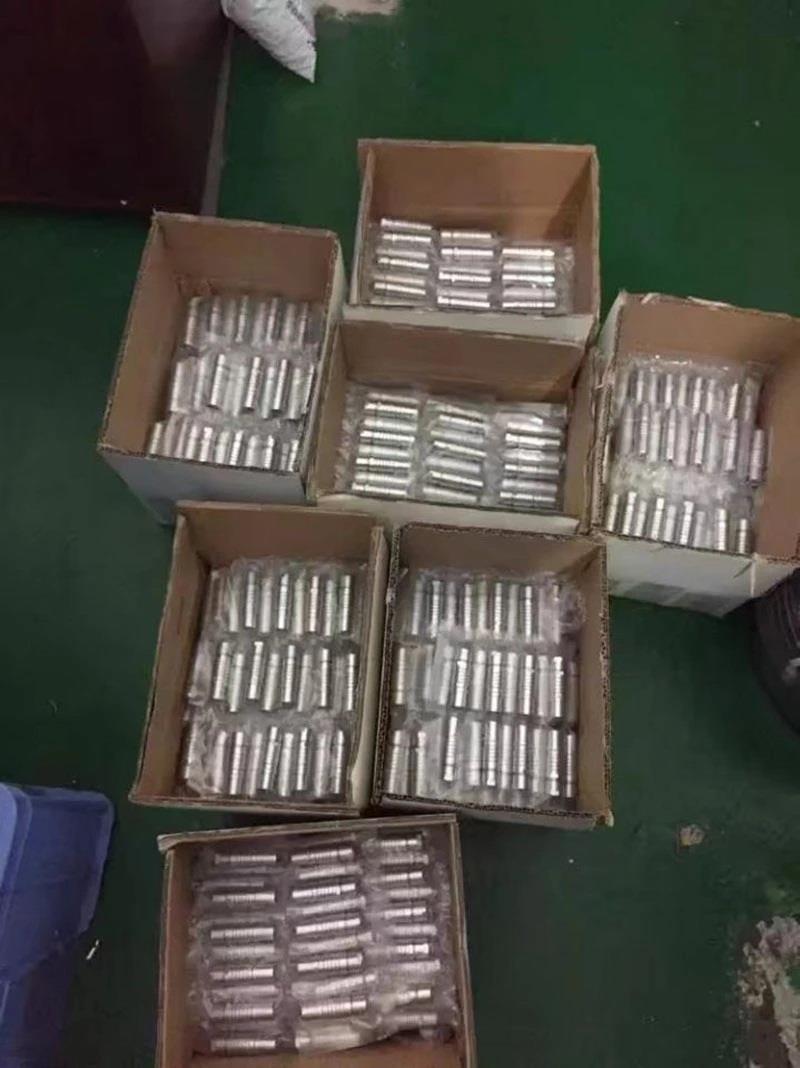

Ntim & Xa Tawm
Cov Ntawv Qhia Ntim 1 PCS connector hauv lub hnab PE,
50-100 PCS cov khoom sib txuas hauv lub thawv me / tas luav
Chaw nres nkoj shenzhen
Lub Sijhawm Ua :
Kom muaj nuj nqis (tej daim) 1 - 200 201 - 500 > 500 Est. Sijhawm (hnub) 5 7. Peb muaj 7 Kom tau sib ceg

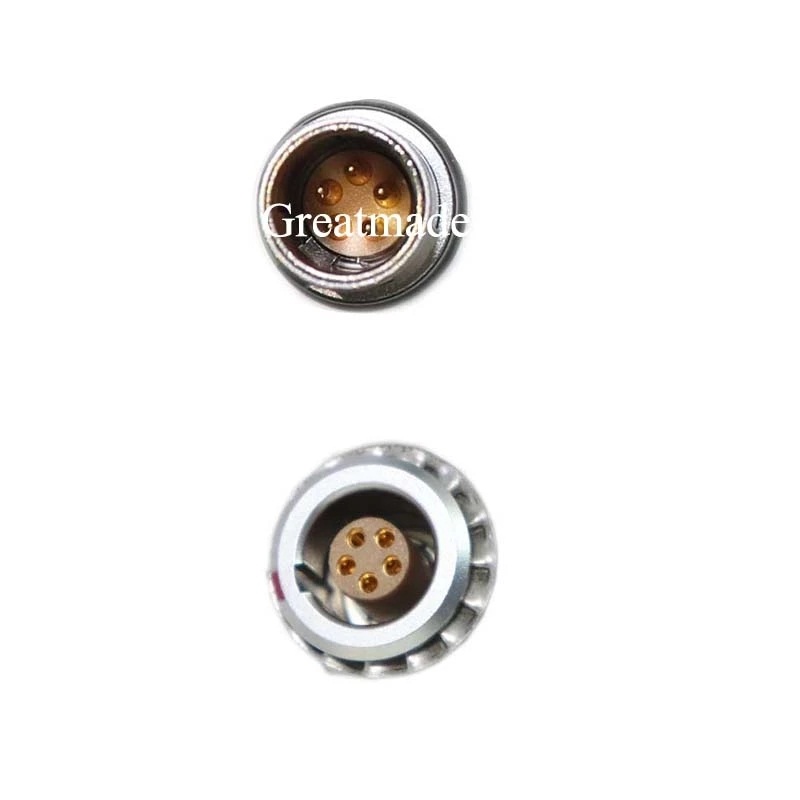

Khoom Piav Qhia
B series txuas txuas muab cov haujlwm zoo li hauv qab no:
1.Txhais kev ruaj khov ntawm Push-Rub tus kheej tuav lub zog.
2.Multiple yuam (alpha = 0/30/45/60).
3.Multipole yam 2 txog 26 tiv tauj.
4.Qhov khoom siv, PCB tiv tauj (ncaj los yog lauj tshib).
5.keying system («G» tus qauv tseem ceeb) ntawm cov khoom sib txuas zoo sib xws rau cov ntsuas txuas.
6.360 ° kev soj ntsuam rau tag nrho EMC kev tiv thaiv.
7.High packing ntom rau qhov chaw txuag.
Khoom Muaj Qauv
| Tooj | FGG.1B.304.CLAD62Z EGG.1B.304.CLL |
| Qhov Coob / Series | 1B 4pin |
| Plhaub Qauv / Qauv | Ntsaws ncaj qha, cable hlua Chaw ruaj khov, noob txiv txhim kho |
| Cov nruas | 1 tus yuam sij (alpha = 0, ntsaws: txiv neej hu, tus txais: poj niam hu) |
| Lub Tsev Khoom Siv | Cov tooj dag (chrome plated) lub plhaub thiab cov pob txiv ntseej, nickel plated tooj dag latch lub tes tsho thiab nruab nrab |
| Kev teeb tsa | Nrig daj (kub plated) |
| Rwb thaiv tsev | PPS |
| Hom Tiv Tauj | Neeg Txom Nyem |
| Endurance (Plhaub) | 5000 mating mus |
| Temp (min) | -40 deg |
| Temp (max) | 200 deg C |
| Vaum (max) | <= 95%="" [ntawm="" 60="" deg="" c="" 140=""> |
| Kev Co | 15 g [10 Hz - 2000 Hz] |
| Poob Siab Kuj | 100 g [6 ms] |
| Ntsev Nroj Tsuag Txhuam Hniav | > 144 hr |
| Qhov Ntsuas Tus IP | IP50 |
Insulator tus kheej rau B series:

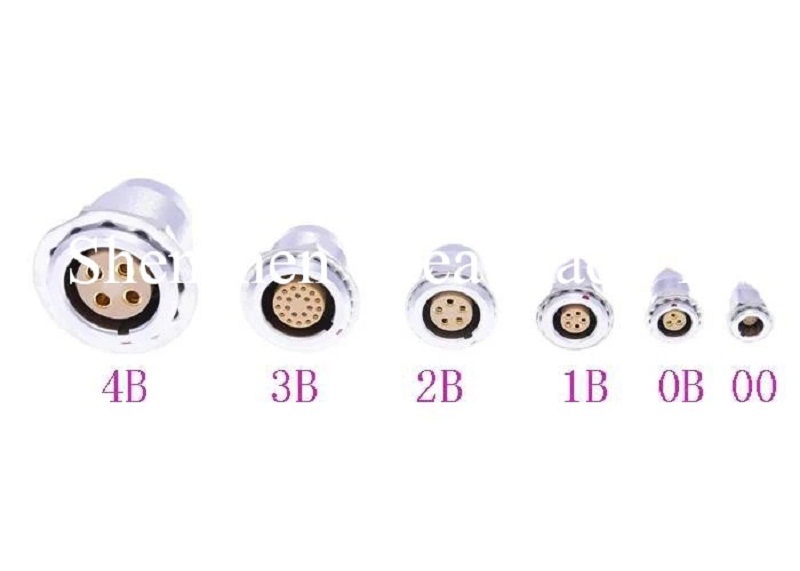

Loj Prodcut:
Cov yam ntxwv khoom
Muaj ntau yam sib tiv tauj hauv txhua series.
Koj tuaj yeem xaj los ntawm peb raws li qhov koj xav tau.

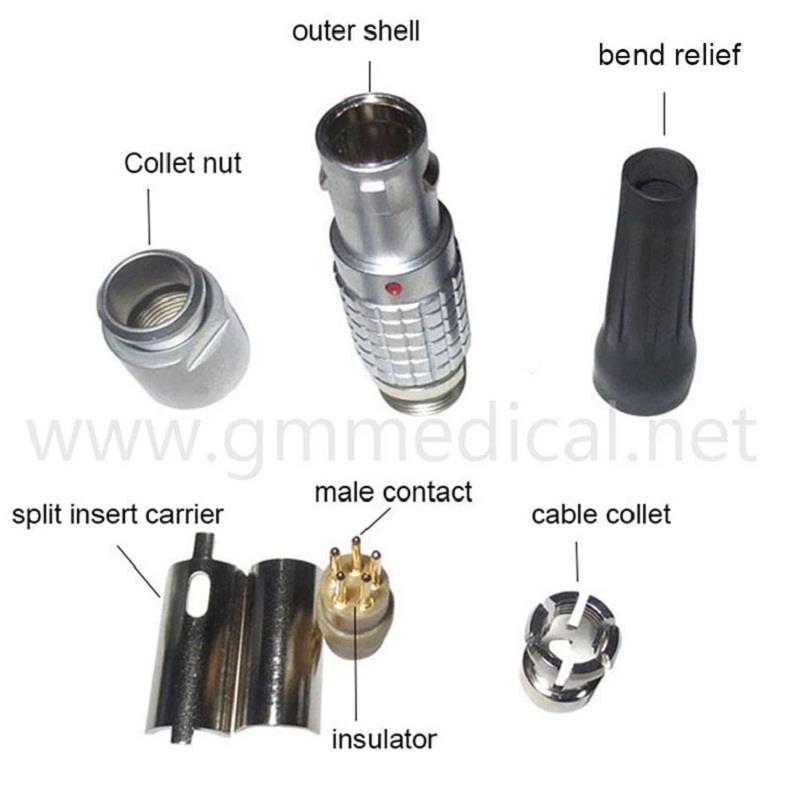

Sab hauv cov qauv
Peb muaj "nrog khoov nyem" thiab "tsis khoov khoov nyem" yam ntxwv, nquag peb yuav xa "nrog khoov nyem",
yog tias koj xav tau "tsis muaj khoov nyem" style, pls qhia peb.
Cov Ntawv Thov Kev Kawm Ntawv
Pab: khoom siv kev zoo nkauj; cov cuab yeej siv kho mob; ntau yam khoom siv high-end xeem; micro drones; kuaj cov khoom siv; cov khoom siv video; pom cov khoom siv; cov khoom siv sib txuas lus tub rog, cov khoom siv txawb, thiab lwm yam
Cov Ntaub Ntawv Tuam Txhab
Shenzhen Greatmade Tech LTD yog cov tsim kev lag luam ua ntej ntawm kev kho mob cable,
Uas yog siv dav nrog ntsuas ntau tus neeg mob saib, mem tes oximeter, EKG ntaus ntawv,
Ntshav siab montior, electrosurgical chav tsev.
Peb muaj 10 xyoo kev hauv daim teb no.

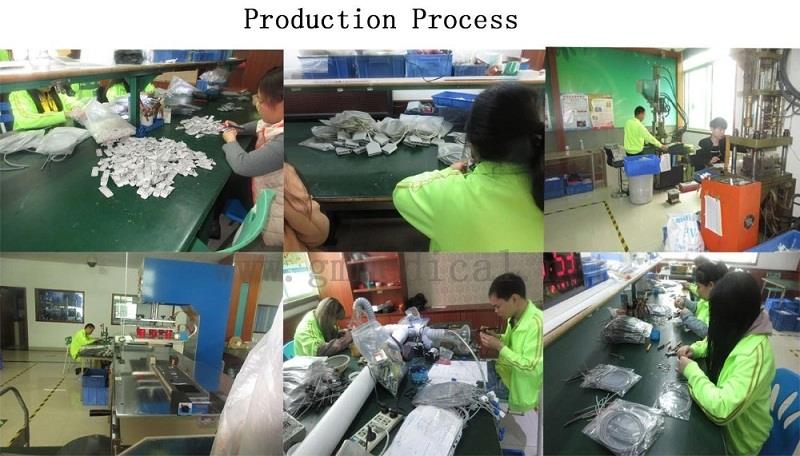

Peb muaj peb tus kheej lub Hoobkas hauv Shenzhen Tuam Tshoj Mainland, thiab muaj tiav kev tsim khoom thiab kuaj ntaus ntawv.Peb tseem tsim cov kws tshawb fawb thiab kev txhim kho pab neeg kom txaus siab rau ntau yam Kev Ua Lag Luam xav tau peb cov kev ua tau zoo, qhov muaj txiaj ntsig zoo thiab kev xav tau kev pabcuam tau ua rau peb lub teb chaws thiab thoob ntiaj teb cov neeg siv khoom ruaj khov. txhawb nqa.

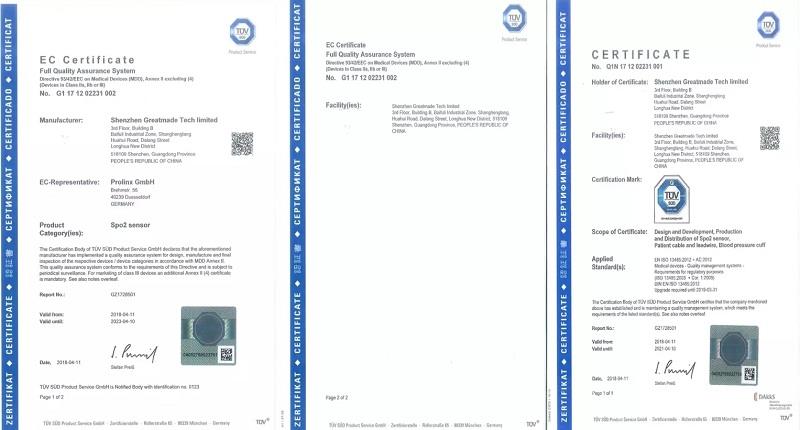

Peb daim ntawv pov thawj:
EC, CE, FDA
