Cov Lus Qhia Ceev
Qhov chaw keeb kwm: Guangdong, Suav Teb (Suav Teb) Tus Npe Lub Npe: Greatmade
Tus Qauv Zauv: EGG FGG.0B.307.CLAD52Z Tub los ntxhais: Poj niam / txiv neej, poj niam thiab txiv neej
Daim Ntawv Thov: Automotive, Lub Teeb, Cov Hluav Taws Xob Txuas Pin: 7pin
Tsev nyob Materia: tooj dag Hu rau Tus Kws Muag Khoom: Plated gold
Kev Kho Kom Zoo: Pearl Chrome Endurance: Saum toj 5000 zaus laub-rub
Khoom Insulator: PPS IP Qib: IP50
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 50000 Daim / Daim Ib Hlis
Ntim & Xa Tawm
Cov Ntawv Qhia Ntim 1 PCS connector hauv lub hnab PE,
50-100 PCS cov khoom sib txuas hauv lub thawv me / tas luav
Chaw nres nkoj shenzhen
Lub Sijhawm Ua :
| Kom muaj nuj nqis (tej daim) | 1 - 200 | 201 - 500 | > 500 |
| Est. Sijhawm (hnub) | 5 | 7. Peb muaj 7 | Kom tau sib ceg |
Khoom Piav Qhia

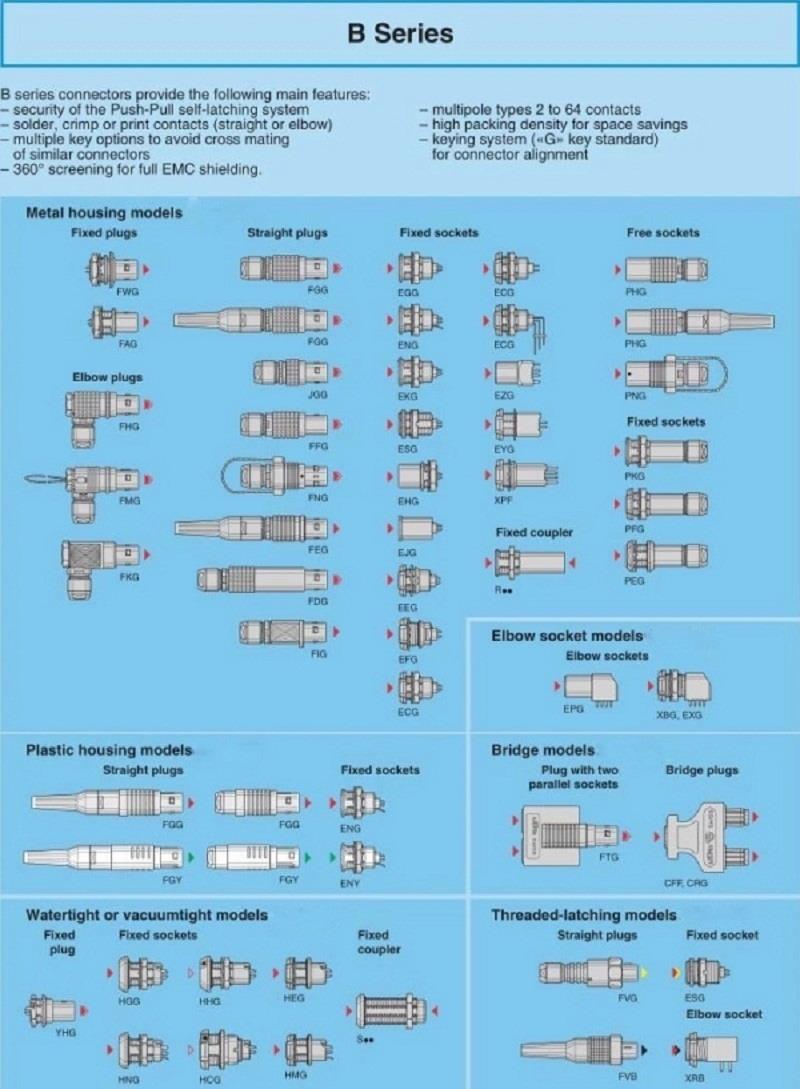

B series txuas txuas muab cov haujlwm zoo li hauv qab no:
1.Txhais kev ruaj khov ntawm Push-Rub tus kheej tuav lub zog.
2.Multiple yuam (alpha = 0/30/45/60).
3.Multipole yam 2 txog 26 tiv tauj.
4.Qhov khoom siv, PCB tiv tauj (ncaj los yog lauj tshib).
5.keying system («G» tus qauv tseem ceeb) ntawm cov khoom sib txuas zoo sib xws rau cov ntsuas txuas.
6.360 ° kev soj ntsuam rau tag nrho EMC kev tiv thaiv.
7.High packing ntom rau qhov chaw txuag.
Khoom Muaj Qauv

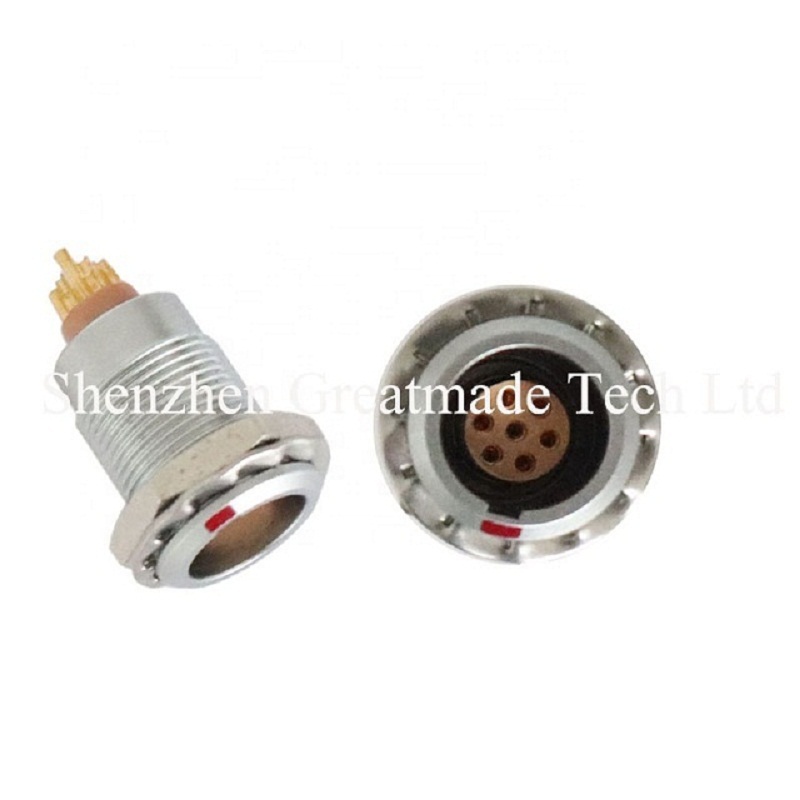

| Tooj | FGG.0B.307.CLAD52Z EGG.0B.307.CLL |
| Qhov Coob / Series | 0B |
| Plhaub Qauv / Qauv | Ntsaws ncaj qha, cable hlua Chaw ruaj khov, noob txiv txhim kho |
| Cov nruas | 1 tus yuam sij (alpha = 0, ntsaws: txiv neej hu, tus txais: poj niam hu) |
| Lub Tsev Khoom Siv | Cov tooj dag (chrome plated) lub plhaub thiab cov pob txiv ntseej, nickel plated tooj dag latch lub tes tsho thiab nruab nrab |
| Kev teeb tsa | Nrig daj (kub plated) |
| Rwb thaiv tsev | PPS |
| Hom Tiv Tauj | Neeg Txom Nyem |
| Endurance (Plhaub) | 5000 mating mus |
| Temp (min) | -40 deg |
| Temp (max) | 200 deg C |
| Vaum (max) | <= 95%="" [ntawm="" 60="" deg="" c="" 140=""> |
| Kev Co | 15 g [10 Hz - 2000 Hz] |
| Poob Siab Kuj | 100 g [6 ms] |
| Ntsev Nroj Tsuag Txhuam Hniav | > 144 hr |
| Qhov Ntsuas Tus IP | IP50 |
Insulator tus kheej rau B series:
Loj Prodcut:
Cov yam ntxwv khoom
1.Qhov nws tus kheej-txheej txheem muaj npe nrov thoob ntiaj teb rau nws txoj kev qhia yooj yim thiab ceev thiab tsis yooj yim. Nws muab kev ruaj ntseg zoo tiv thaiv kev vibration, poob siab los yog rub tawm ntawm lub cable, thiab tswj kev ua haujlwm hauv qhov chaw tsawg heev
2. Kev ruaj ntseg ntawm Push-Rub tus kheej tuav lub zog. Cuam nrawm thiab rub tawm, nws yooj yim heev rau siv.
3. Ntau txoj hauv kev xaiv tseem ceeb kom tsis txhob hla cov kab sib txuas ntawm cov sib txuas zoo sib xws, tiv thaiv kom tsis muaj qhov ntxig tsis raug.
5. Ua los ntawm cov hlau, zoo thiab ruaj khov.
6. Hais txog khoov nyem: peb muaj ntau cov xim xaiv los ntawm, tuaj yeem tiv thaiv kev ntxig ntxig
7. B series belongs rau cov qauv keyed Series, Kev tiv thaiv Ingress yog IP50, haum rau siv sab hauv tsev.
8. K series belongs rau watertight keyed Series, Ingress tiv thaiv yog IP 66 rau IP68, haum rau siv sab nraum zoov.

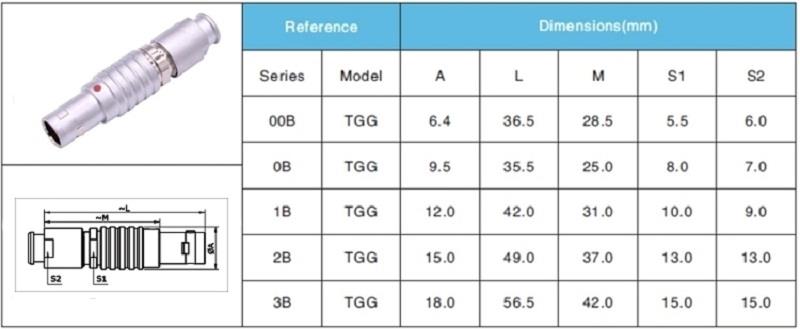

Qhov ntau thiab tsawg thiab kev tiv tauj
Cov kev pabcuam customization, koj tuaj yeem xaiv cov koob (qhov loj me) koj xav tau thiab tus naj npawb ntawm cov neeg koj xav tau.
Peb muaj ntau qhov ntau thiab tsawg: 00B, 0B, 1B, 2B thiab 3B thiab lwm yam (Tsuas txhais tau tias qhov ntau thiab tsawg)
Muaj ntau yam sib tiv tauj hauv txhua series.
Koj tuaj yeem xaj los ntawm peb raws li qhov koj xav tau.

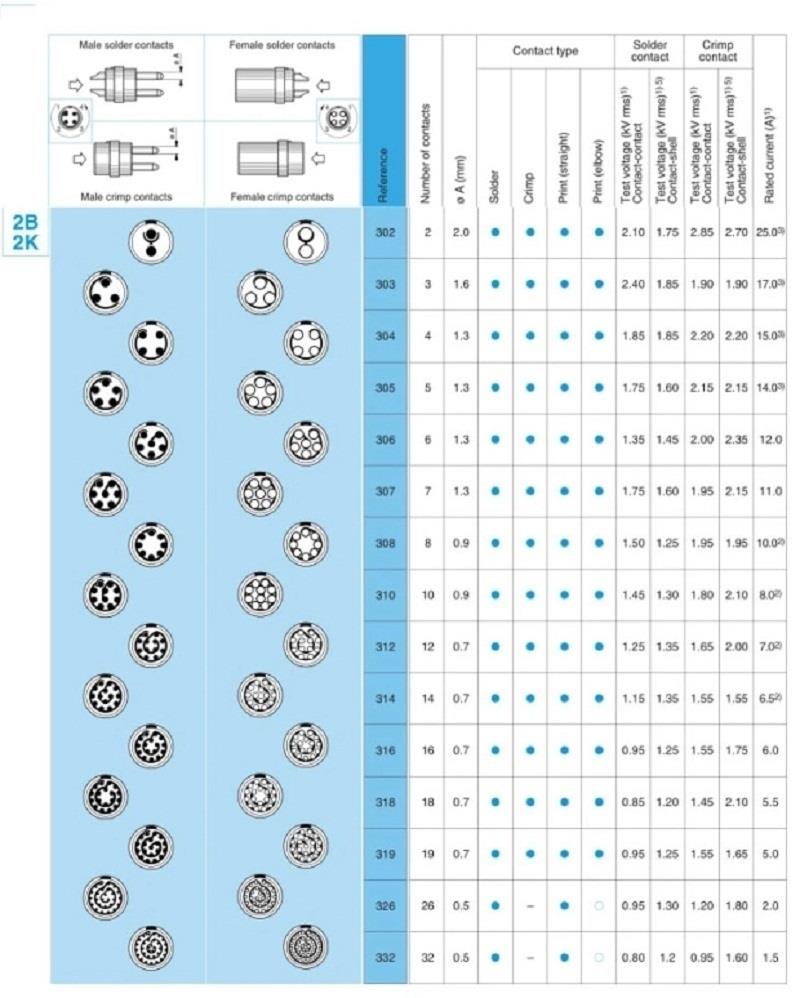

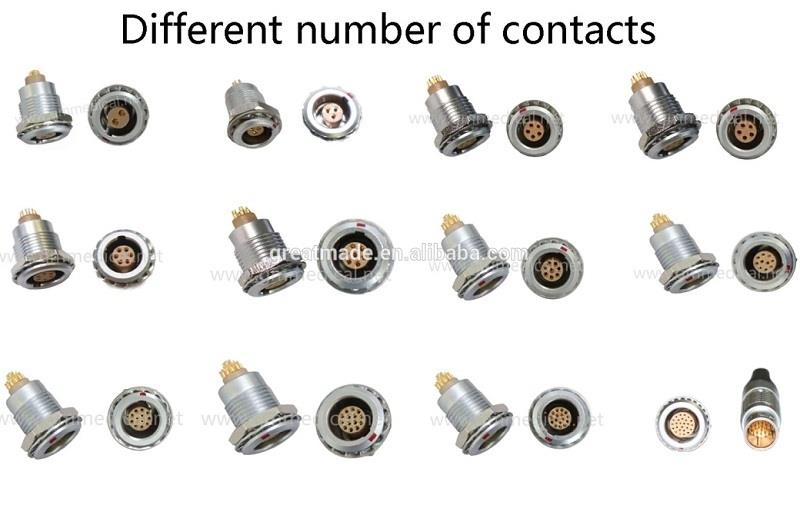

Txawv Series Sib Txuas Pins Tooj:
1. 00B Series: 2 pins, 3 pins, 4 pins, 5 pins
2.0B Series: 2 pins, 3 pins, 4 pins, 5 pins, 6 pins, 7 pins, 9 pins
3.1B Series: 2 pins, 3 pins, 4 pins, 5 pins, 6 pins, 7 pins, 8 pins, 10 pins, 12 pins, 14 pins, 16 pins
4.2B Series: 2 pins, 3 pins, 4 pins, 5 pins, 6 pins, 7 pins, 8 pins, 10 pins, 12 pins, 14 pins, 16 pins, 18 pins, 19 pins
5. 3B Series: 3 pins, 4 pins, 7 pins, 8 pins, 10 pins, 12 pins, 14 pins, 16 pins, 18 pins, 20 pins, 24 pins, 26 pins, 30 pins
Multipole
Hu hom
Soldering yam ntxwv
- tsis tas yuav yuam kom muaj cov cuab yeej tshwj xeeb, ib qho yooj yim soldering hlau yog qhov txaus
- zoo tagnrho rau tus qauv me me thiab puas yooj yim dua
- muaj mob nrog cam khob kom cia cov solder ntws
Sab hauv cov qauv
Peb muaj "nrog khoov nyem" thiab "tsis khoov khoov nyem" yam ntxwv, nquag peb yuav xa "nrog khoov nyem",
yog tias koj xav tau "tsis muaj khoov nyem" style, pls qhia peb.
Cov Ntawv Thov Kev Kawm Ntawv
Pab: khoom siv kev zoo nkauj; cov cuab yeej siv kho mob; ntau yam khoom siv high-end xeem; micro drones; kuaj cov khoom siv; cov khoom siv video; pom cov khoom siv; cov khoom siv sib txuas lus tub rog, cov khoom siv txawb, thiab lwm yam
Tag nrho cov khoom ntawm cov txuas hlau
Cov Ntaub Ntawv Tuam Txhab
Shenzhen Greatmade Tech LTD yog cov tsim kev lag luam ua ntej ntawm kev kho mob cable,
Uas yog siv dav nrog ntsuas ntau tus neeg mob saib, mem tes oximeter, EKG ntaus ntawv,
Ntshav siab montior, electrosurgical chav tsev.
Peb muaj 10 xyoo kev hauv daim teb no.
Peb muaj peb tus kheej lub Hoobkas hauv Shenzhen Tuam Tshoj Mainland, thiab muaj tiav kev tsim khoom thiab kuaj ntaus ntawv.Peb tseem tsim cov kws tshawb fawb thiab kev txhim kho pab neeg kom txaus siab rau ntau yam Kev Ua Lag Luam xav tau peb cov kev ua tau zoo, qhov muaj txiaj ntsig zoo thiab kev xav tau kev pabcuam tau ua rau peb lub teb chaws thiab thoob ntiaj teb cov neeg siv khoom ruaj khov. txhawb nqa.
Peb qhov kev sib tw tau txais txiaj ntsig yog hauv qab no:
1.Various cov khoom rau kev xaiv dav.
2. Tag nrho cov txheej txheem cov khoom tiav rau peb tus kheej lub Hoobkas.
3.Txhais-Hoobkas kev sib tw nqi
4. Kev Tshawb Fawb Txog Kev Ua Haujlwm thiab Kev Loj Hlob
5. Kev tswj kom zoo thaum lub sijhawm ua cov txheej txheem thiab cov khoom tiav.
6. Cov khoom siv tau yooj ywm tus nqi thiab xa tawm
7. Kev xav zoo rau cov neeg siv khoom thaum lub sijhawm muag khoom thiab tom qab muag.
(5) Daim ntawv pov thawj: ISO13485, CE thiab FDA
Q1: Puas yog koj lub tuam txhab ua lag luam lossis chaw tsim khoom?
A: Peb yog cov chaw tsim khoom.
Q2: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Nws yog 15 hnub tom qab kev them nyiaj tiav.
Q3: Koj puas muab cov qauv? puas yog pub dawb los yog ntxiv?
A: Yog, peb muab cov qauv dawb, tab sis koj yuav them rau tus nqi thauj khoom.
Q4: Koj cov nqe lus them nqi yog dab tsi?
A: Yog tias qhov them nyiaj <= $="" 1000,="" 100%="" ua="">
Kev Them Nyiaj> = $ 1000, peb lees txais 50% T / T ua ntej.
Q5: Koj cov khoom puas muaj warranty?
A: Yog, txhua yam ntawm peb txoj kev sib txuas tuaj yeem ua haujlwm ib txwm ua haujlwm tom qab 5000 phaum mating, Peb lub Hoobkas muaj cov khoom siv los kuaj lawv ua ntej xa khoom. Kev puas tsuaj vim kev siv tsis zoo, kev kho mob thiab tsis tau tso cai kho thiab kho dua tshiab tsis them los ntawm peb lub warranty.
Q6: Koj tau txais txiaj ntsig dab tsi? Vim li cas peb xaiv koj?
A: 1) Ntau xyoo dhau los ntawm kev ua cov ntsuas dej tsis zoo thiab R & D.We muaj cov txuj ci siab tshaj plaws thiab pab pawg.
2) Qhov zoo heev ntau lawm muaj peev xwm ua kom ruaj khov. Raws li cov neeg siv khoom, Peb txhawb cov customized suav nrog pob.
3) Peb siv 100% cov ntaub ntawv tshiab thiab cov txheej txheem tsim khoom zoo tshaj plaws.
Cim npe nrov: tau tshaj tooj dag 0b thawb rub txuas 7 tus pin txuas chrome plhaub rau cov khoom siv video, Suav teb, cov chaw tsim khoom, lag luam, customized, bulk, yuav luv nqi, nqi qis, zoo siab
