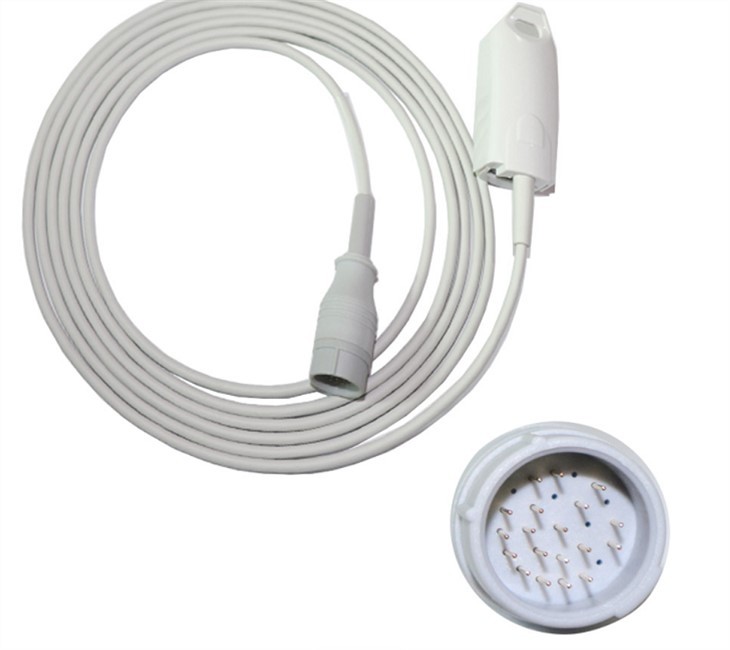

Tau tshaj Direct-Connect SpO2 Sensor - 2054
Compatibility:
| Chaw tsim tshuaj paus | Qauv |
|---|---|
| Masimo |
Rad-5, Rad-57, Rad-5v, Rad-8, Rad-87, Rad{5}} |
| Riester |
RVS 100 |
| Stryker > Medtronic > Physio Control |
Lifepak 15 |
| Welch Allyn |
73MT-B, 74ME-B, 74MX-B, 75 MT-B Connex Spot, 75ME-B |
| Zoll |
X Series |
Technical Specifications:
| Cable Xim | Grey |
|---|---|
| Cable Diameter | 4 hli |
| Qeb | SpO2 |
| Txuas | Liab, 20-pin connector |
| Txuas | Adult Clip |
| Latex-dawb | Yog lawm |
| Ntim Hom | Hnab |
| Ntim Unit | 1 |
| Tus Neeg Mob Loj | Adult (>40 Kg) |
| SpO2 Technology | MS |
| Tsis muaj menyuam | Tsis muaj |
| Tag nrho Cable Length | 3m |
| Warranty | 12 hli |
Ceeb toom:
Thaum koj xaiv Spo2 sensor, thov ua tib zoo xyuas cov ntsiab lus hauv qab no:
1. Yog hais tias lub Spo2 sensor connector yeej sib xws rau koj tus neeg mob saib lub qhov (socket), xws li 8pin lossis 9pin.
2. Yog tias muaj qhov sib txawv spo2 moudle rau tib hom neeg mob saib xyuas, xws li cov spo2 moudle nrov xws li nellcor, massimo, thiab lwm yam.
3. Yog tias lub sensor siv rau cov neeg zoo? xws li rau cov neeg laus lossis menyuam yaus.
4. Thaum koj xaiv qhov luv cable spo2 sensor, thov xyuas yog tias koj muaj lub adapter cable hauv tes, yog tias koj tsis muaj, koj tuaj yeem xaiv nws hauv peb lub khw. Lawv xav tau kev sib txuas ua ke los ua haujlwm.
5. Yog tias koj muaj lub hom phiaj tshwj xeeb, thov qhia rau kuv paub, peb yuav sim muab cov kev pabcuam thiab kev qhia rau koj.
【Key Technical Parameter】
Ntau yam ntawm tus mem tes (30-245) bpm: ± 3bpm.
90 feem pua -100 feem pua SpO2: ± 2 lej;
Qhov ntau ntawm wavelength rau LED ntawm lub teeb liab: 660nm (± 3nm).
Qhov ntau ntawm wavelength rau LED ntawm lub teeb infrared: 905nm (± 3nm).
【Qhov chaw ua haujlwm】
Ua haujlwm kub: ntxiv rau 5 degree - ntxiv rau 40 degree
Cia / thauj khoom kub: -20 degree - ntxiv rau 70 degree
Humidity: 10 feem pua -80 feem pua (tsis muaj condensation)
Atmospheric siab:86kPa-106kPa
Peb cov khoom tseem ceeb:
1. Reusable / Disposable Spo2 Sensor
2. Spo2 extension cable
3. ECG lub cev cable & leadwire
4. EKG Cable & Accessories
5. ECG electrodes
6. EEG Leadwires nrog electrodes
7. IBP Cable / Disposable IBP transducer
8. Lub pas dej
9. NIBP cuff/hose/connecor
10. Kev ntsuas kub
11. Kev kho mob roj teeb thiab O2 cell
12. TOCO thiab US transducer
Kev pab cuam tom qab muag
1. Lub Sijhawm Warranty: peb yuav muab kev hloov pauv rau txhua qhov teeb meem zoo hauv lub sijhawm raws li kev siv ib txwm muaj.
2. Yog tias cov khoom tshiab tsis tuaj yeem ua haujlwm nrog koj cov khoom siv, peb yuav xa cov khoom hloov tshiab lossis rov qab rau lub sijhawm.
FAQ
Dab tsi yog SpO2 sensor?
Yog tias koj tau mus yos hav zoov rau lub smartwatch tshiab, tej zaum koj tuaj yeem hla cov ntsiab lus SpO2 sensors, mem tes ox, lossis ntshav oxygen qib. SpO2 sensors ntsuas koj cov ntshav oxygen saturation - lossis, muab tso yooj yim dua, cov pa oxygen uas koj muaj hauv koj cov ntshav.
Dab tsi yog qhov qub SpO2 qib?
Qib ib txwm ntawm cov pa oxygen feem ntau yog 95 feem pua lossis siab dua. Qee cov neeg uas muaj mob ntsws ntev lossis pw tsaug zog apnea tuaj yeem muaj qib li qub nyob ib ncig ntawm 90 feem pua. Kev nyeem ntawv "SpO2" ntawm lub pulse oximeter qhia qhov feem pua ntawm cov pa oxygen hauv ib tus neeg cov ntshav. Yog tias koj lub tsev nyeem SpO2 qis dua 95 feem pua, hu rau koj tus kws kho mob.
Yuav ntsuas SpO2 li cas?
Lub pulse oximeter tuaj yeem ntsuas cov pa oxygen saturation. Nws yog ib qho khoom siv uas tsis muaj kab mob tso rau ntawm tus neeg ntiv tes. Nws ntsuas lub teeb wavelengths los txiav txim qhov piv ntawm cov theem tam sim no ntawm oxygenated hemoglobin rau deoxygenated hemoglobin. Kev siv pulse oximetry tau dhau los ua tus qauv kev saib xyuas hauv cov tshuaj.
Vim li cas sp02 tseem ceeb?
Ib qib SpO2 ib txwm yog qhov tseem ceeb rau kev tswj hwm kev noj qab haus huv ntawm tag nrho cov ntaub so ntswg hauv lub cev. Raws li tau hais dhau los, hypoxemia yog qis oxygen saturation hauv cov ntshav. Hypoxemia yog cuam tshuam ncaj qha rau hypoxia, uas tsis tshua muaj oxygen saturation nyob rau hauv lub cev cov ntaub so ntswg.
