Tus qauv tseem ceeb Series B LH-FGG
Tus yam ntxwv feature ntawm cov connector series yog ib tug keying system uas tso cai rau siab dua kev sib cuag ceev thiab tiv thaiv tag nrho cov yuam kev nyob rau hauv kev sib raug zoo. Cov kev xaiv ntau yam tseem ceeb tiv thaiv kev tsis sib haum xeeb ntawm kev sib txuas ntawm lwm yam sib xws. Nws tseem tuaj yeem siv crimp hu kom txo tau lub sijhawm sib dhos cable. Cov kab txuas txuas no, suav nrog 0B txog 5B ntau ntxiv nrog rau 00 multipole thiab 2G (shortened version of the 2B series), qee cov qauv nqus tsev vacuumtight kuj muaj.
B Series JH-FGG muaj qhov hloov pauv tau, ua tau zoo, ruaj khov thiab txhim khu kev qha ntau qhov sib txuas rau cov ntawv thov xav tau ceev thiab ruaj ntseg Push-Pull locking.
Tus kheej-latching system tso cai rau lub connector yuav mated los ntawm tsuas yog thawb lub plug axially rau hauv lub qhov (socket).
Thaum nruam latched, kev sib txuas tsis tuaj yeem tawg los ntawm rub lub cable lossis lwm yam khoom siv uas tsis yog lub tes tsho tawm sab nraud.
Ua kom nws yog qhov kev xaiv zoo tshaj plaws rau kev tsim khoom semiconductor thiab kev sim cov txheej txheem, kev sim thiab ntsuas, ntsuas, khoom siv kho mob, kev tshawb fawb thiab kev siv suab / video.
MAIN NTA:
B series connectors muab cov yam ntxwv tseem ceeb hauv qab no:
- Kev ruaj ntseg ntawm Push-Pull self-latching system - ntau hom 2 txog 64 tus neeg sib cuag
- solder, crimp lossis luam tawm cov ntaub ntawv (ncaj lossis lub luj tshib) - ntim ntim siab rau qhov chaw txuag
- 360 degree kev tshuaj ntsuam rau tag nrho EMC tiv thaiv. - keying system («G» tus qauv tseem ceeb)
- Ntau qhov kev xaiv tseem ceeb kom tsis txhob hla kev sib txuas ntawm cov khoom sib txuas zoo sib xws rau kev sib txuas sib txuas
Ntu ntu qhia cov khoom siv sab hauv
| TSIS MUAJ. |
Tsau qhov (socket). |
Ncaj nraim |
| 1. |
lub plhaub sab nraud |
lub plhaub sab nraud |
|
2. |
earthing crown |
latch tes tsho |
| 3. |
tuav lub nplhaib |
nut cog |
|
4. |
hexagonal txiv ntseej |
split insert cab kuj |
| 5. |
xauv lub tshuab ntxhua khaub ncaws |
rwb thaiv tsev |
| 6. |
rwb thaiv tsev |
txiv neej sib cuag |
| 7. |
poj niam tiv tauj |
collet |
Cov yam ntxwv
Mechanical thiab Climatical
Yam ntxwv tus nqi Standard
Endurance >5000 cycles IEC 60512-5 xeem 9a
Humidity txog 95 feem pua ntawm 60 ° C
Qhov kub thiab txias - 55 degree C, ntxiv rau 250 degree C
Ua haujlwm rau kev vibration 10-2000 Hz, 15 g IEC 60512-4 test 6d
Shock resistance IEC 60512-4 xeem 6c
ntsev tsuag tshuaj tiv thaiv corrosion> 144h IEC 60512-6 xeem 11f
Kev tiv thaiv ntsuas (mated) IP50 IEC 60529
Climatical qeb 55/175/21 IEC 60068-1
Hluav taws xob
Yam ntxwv tus nqi Standard
Tiv thaiv at 10 MHz >75 dB IEC 60169-1-3
efficiency at 1 GHz >40 dB IEC 60169-1-3
Cov kev sim ntau yam tau ua nrog JH-FGG thiab JH-EGG connector khub, nrog chrome-plated tooj dag plhaub thiab PEEK insulator.

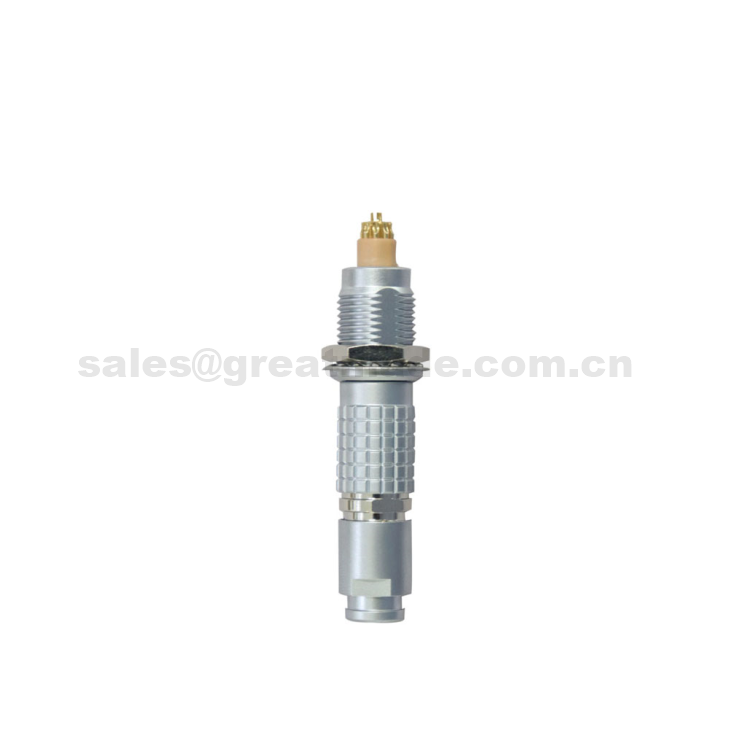

JH-FGG B Series Txiv neej Ncaj Plug
JH-FGG Ncaj nraim, qhov tseem ceeb (G) lossis cov yuam sij (A…M thiab R),kab kab
| Kev siv | Qhov siab (mm) | |||||
| Qauv | Series | A | L | M | S1 | S2 |
| LFGG | 00B | 6.4 | 28.5 | 20.5 | 5.5 | 5 |
| LFGG | 0B | 9.5 | 36 | 26 | 8 | 7 |
| LFGG | 1B | 12 | 43 | 32 | 10 | 9 |
| LFGG | 2B | 15 | 50 | 38 | 13 | 12 |
| LFGG | 3B | 18 | 58 | 43 |
15 |
14 |
JH-FGG Ncaj ntsaws, qhov tseem ceeb (G) lossis cov yuam sij (A…M), cable collet thiabtxiv ntseej rau haum khoov nyem
| Kev siv | Qhov siab (mm) | |||||
| Qauv | Series | A | L | M | S1 | S2 |
| LFGG | 00B | 6.4 | 28.5 | 20.5 | 5.5 | 5 |
| LFGG | 0B | 9.5 | 36 | 26 | 8 | 7 |
| LFGG | 1B | 12 | 43 | 32 | 10 | 9 |
| LFGG | 2B | 15 | 50 | 38 | 13 | 12 |
| LFGG | 3B | 18 | 58 | 43 |
15 |
14 |
Paub meej
Khoom npe: Push Pull Self-latching Multipole Ncaj Plug Connector
Keeb kwm: Tuam Tshoj Hom Lub Npe: Greatmade Hom: voj voog rub rub
Ib puag ncig: Sab Hauv Tsev Poj Niam: Poj Niam / Txiv Neej Kev Kho Mob: Pearl chrome
Pin: 2 txog 16 tus pin IP Degree: IP50 Hu rau Hom: Solder
Hu rau Cov Neeg Kho Mob: Plated kub Endurance: Saum 5000 lub sij hawm thawb-rub Housing Materia: Chromium-plated tooj dag
Insulator Khoom: PPS Daim Ntawv Thov: Automotive / Kev Sib Txuas Lus / Kev Lag Luam / LED zaub
Ntim
1 PCS connector nyob rau hauv ib lub hnab PE
50-100 PCS connectors nyob rau hauv ib lub thawv me me/cartoon
- Chaw nres nkoj: Shenzhen, Suav teb
